O.F.max(n{gf}) |
R.F.min(n{gf}) |
P.T.max |
D.T.max |
T.T.max |
|

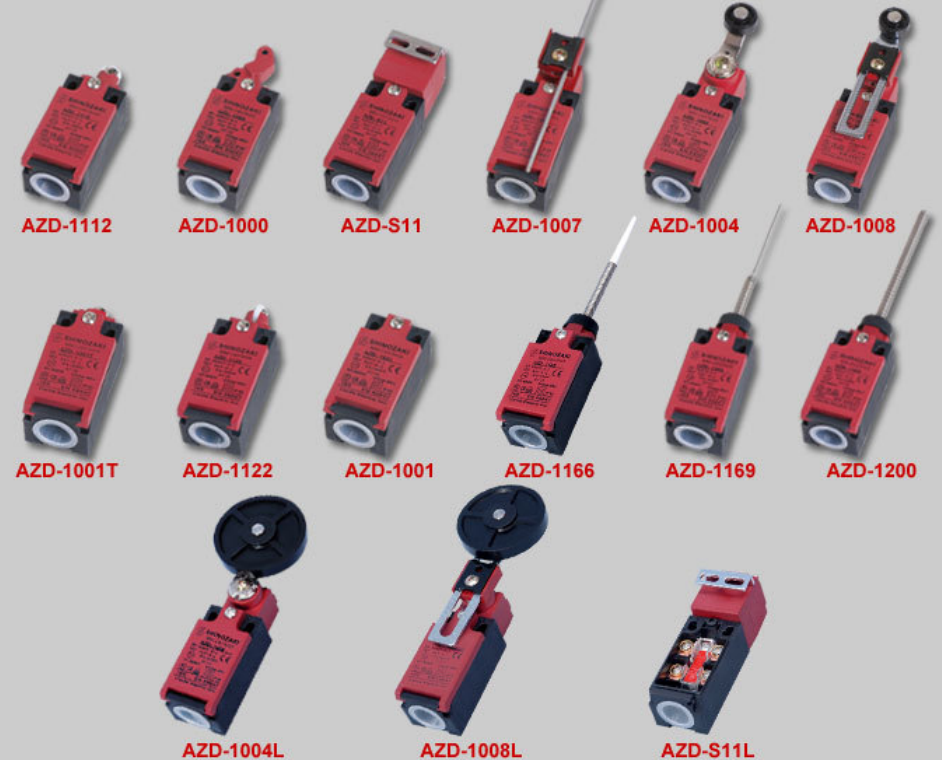

AZD-S11 |
12 |
5 |
－ |
－ |
－ |
|
AZD-1008 |
4.90{500} |
4.90{50} |
20-60 |
14degree |
30degree |
|
AZD-1004 |
4.90{500} |
4.90{50} |
0.49{50} |
14degree |
30degree |
|
AZD-1007 |
7.84{800}`1.99{203} |
0.49{50}`0.12{12} |
20-60 |
10degree |
95degree |
|
AZD-1000 |
3.92{400} |
0.78{80} |
20degree |
1.6mm |
5degree |
|
AZD-1001 |
6.37{650} |
1.47{150} |
4mm |
1.2mm |
4mm |
|
AZD-1001T |
6.37{650} |
1.47{150} |
4mm |
1.2mm |
4mm |
|
AZD-1112 |
6.37{650} |
1.47{150} |
2mm |
1.2mm |
4mm |
|
AZD-1122 |
6.37{90} |
1.47{150} |
2mm |
－ |
4mm |
|
AZD-1166 |
0.08{90} |
－ |
30mm |
－ |
50mm |
|
AZD-1169 |
0.08{90} |
－ |
30mm |
－ |
50mm |
|
AZD-1200 |
0.08{90} |
－ |
30mm |
|
50mm |
|
|
|
|
AZD paticulars |
|
|
Contact type |
1N.C.+1N.O.(SLOW ACTION) |
|
|
额定工作电压Ue（V） |
250V |
|
|
Rated insulation voltage Ui(v) |
400V |
|
|
Rated operating currentle (A) |
2V |
|
|
Utilization category |
AC-15 |
|
|
Ambienttemp |
-20℃~+60℃ |
|
|
Ambient humidity |
95% Max |
|
|
Operating freq |
120 Operation/min |
|
|
Short-circuit current |
0.5kA |
|
|
|
 |
LOAD/OLTAGE
負載/電壓 |
RESISTIVE
LOAD/COS Φ 1
抵抗負載 |
INDUCTIVE
LOAD/COS Φ 0.4 |
|
AC 125V |
5A |
3A |
|
AC 250V |
5A |
2A |
|
DC 125V |
0.4A |
0.1A |
|
